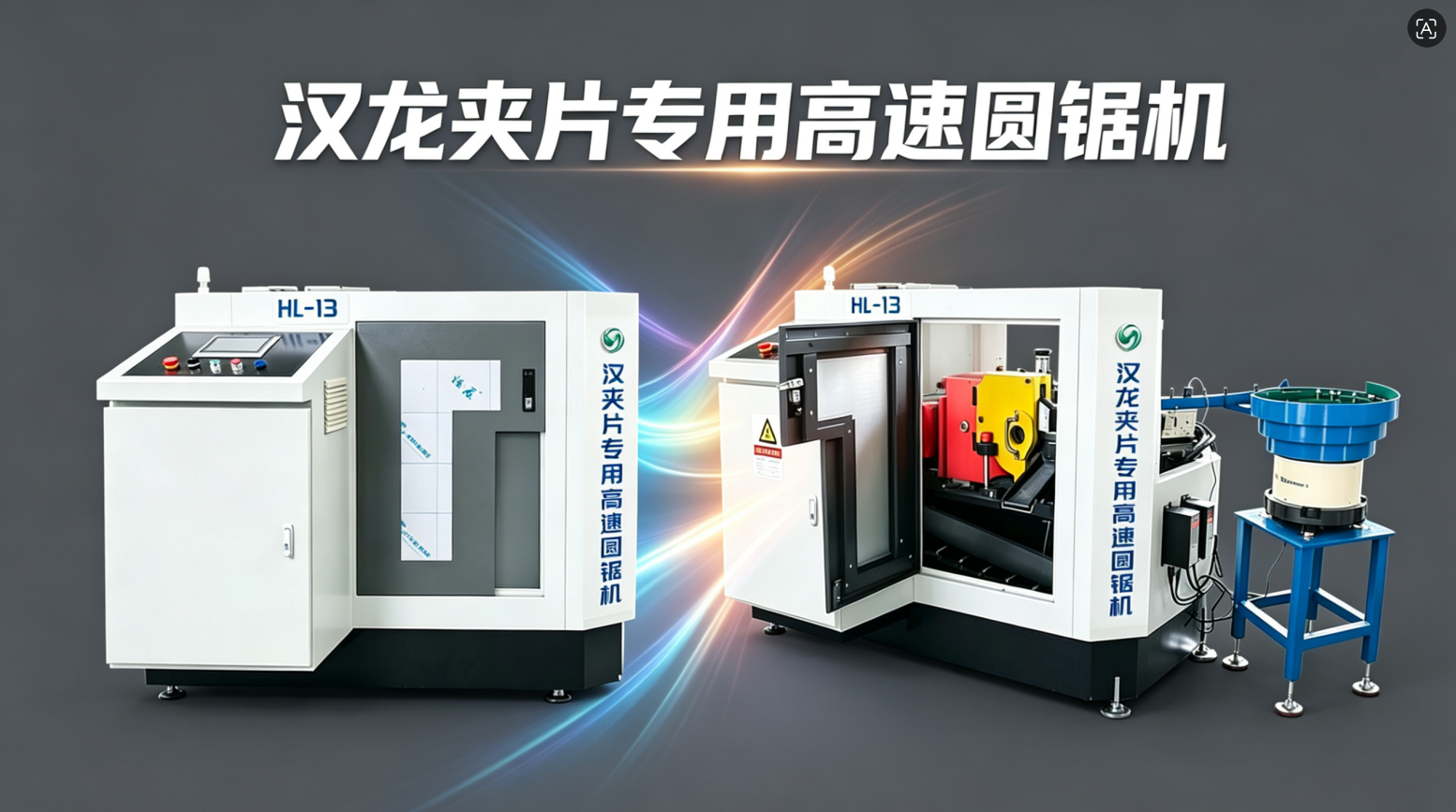

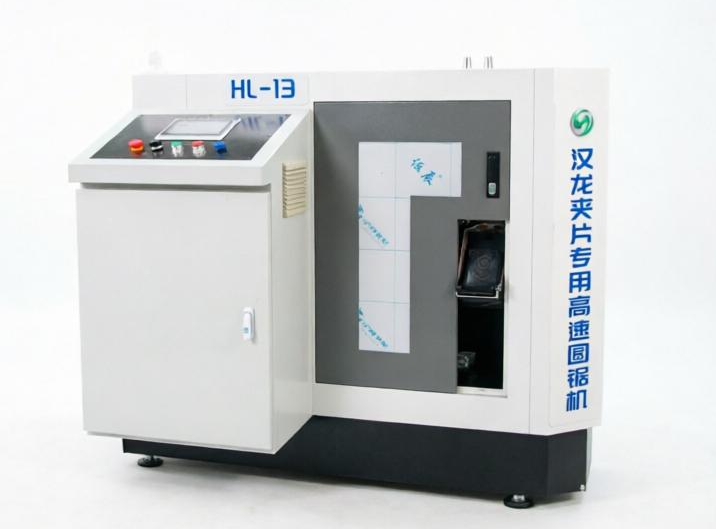

HL-13 High-Speed Circular Sawing Machine with Clamping Jaws

Hotline： +86-533-5333776

Product Description


电影和电视 2026_2_9 16_29_56.png

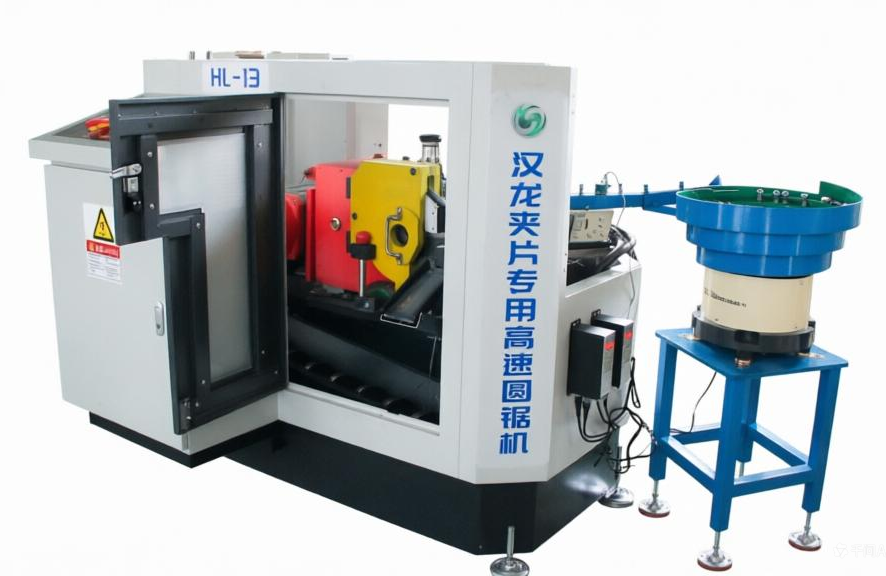

The HL-13 Segmented Saw consists primarily of the machine bed, power head assembly, feeding system, clamping device, automatic feeding mechanism, hydraulic system, electrical system, water cooling system, automatic saw blade lubrication system, saw blade cleaning device, and other components.

Key Technical Parameters and Configuration

name	unit	Specification
Sawing Range	mm	Clip-on13
Carbide Circular Saw Blade	mm	Φ285xφ32xt1.5
Spindle Motor	Kw	7.5（Servo）
Spindle Speed	Rpm	80-200
Cut-off Feed Method		AC Servo Motor + Ball Screw + Linear Roller Guide
Main Clamping Method		Vertical Clamping
Saw Blade Debris Removal Device		Passive Voice
Gear Backlash Compensation Device		Magnetic Powder Brake
Feed Drive Method		Adjustable Cylinder + Fixture Push Rod
Hydraulic Motor	Kw	1.5
Hydraulic Oil Capacity	L	45
Machine tool weight: approx.	Kg	Approximately 1,200 (including the feeder and vibrating bowl).
Land Area	m	Approx. 2 × 1.5
Sawing Efficiency	minute	3–4 finished products per minute
Production Capacity		1,440–1,920 pieces per 8-hour shift.
